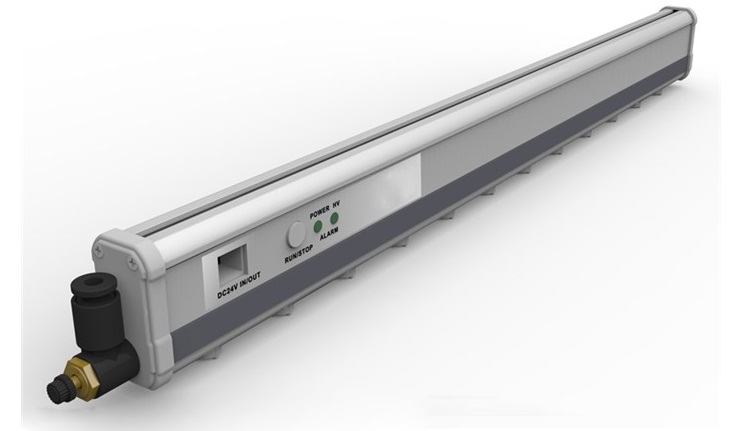

Ionizing Air Bar 1.8m / Ion square rod
1. Ion balance monitoring system with LED display
2. Sound and light alarm for abnormal high pressure detected
3. Automatic shut-down sensor to detect obstacles during working
4. Fast, targeted of neutralization of electrostatic charge: ≤2S
5. Special tungsten alloy discharge needles, designed for longevity without abrasion
6. Touch control or remote control: power on / off, ion airflow speeds
7. The wind speed will be displayed through LED to achieve visual management.
8. Automatic cleaning of electrodes (every 8h, possible to personalize)
9. Automatic memorizing of cleaning program setted
10. Low energy consumption, economical and ecological
Specifications
power
10W
Output frequency
0.1, 0.3, 1, 3, 5, 8, 10, 20, 30, 50 (Hz)
Output voltage
DC ± 5KV
Operating distance
50-2000 mm
Ion balance
≤ ± 30V ( Adjustable)
Discharge time
≤ 2S (Distance of 300mm)
Audible noise
45-65dB
Air volume output
160-330 CFM
Duty factor
34% - 64%
Air pressure range
0.1 – 0.6 Mpa
Indicator Lights
High bright LED/Fault
Audible Alarm
Fault of pressure
Operating temperature
0-50°C
Operating humidity
˂70%
Dimensions
385 – 410mm (intervalle 25mm): 460 – 2960 mm ( intervalle 50mm)
Length of lead
2.5M
Mounting
Sand blasting
Warranty
1 year limited warranty
