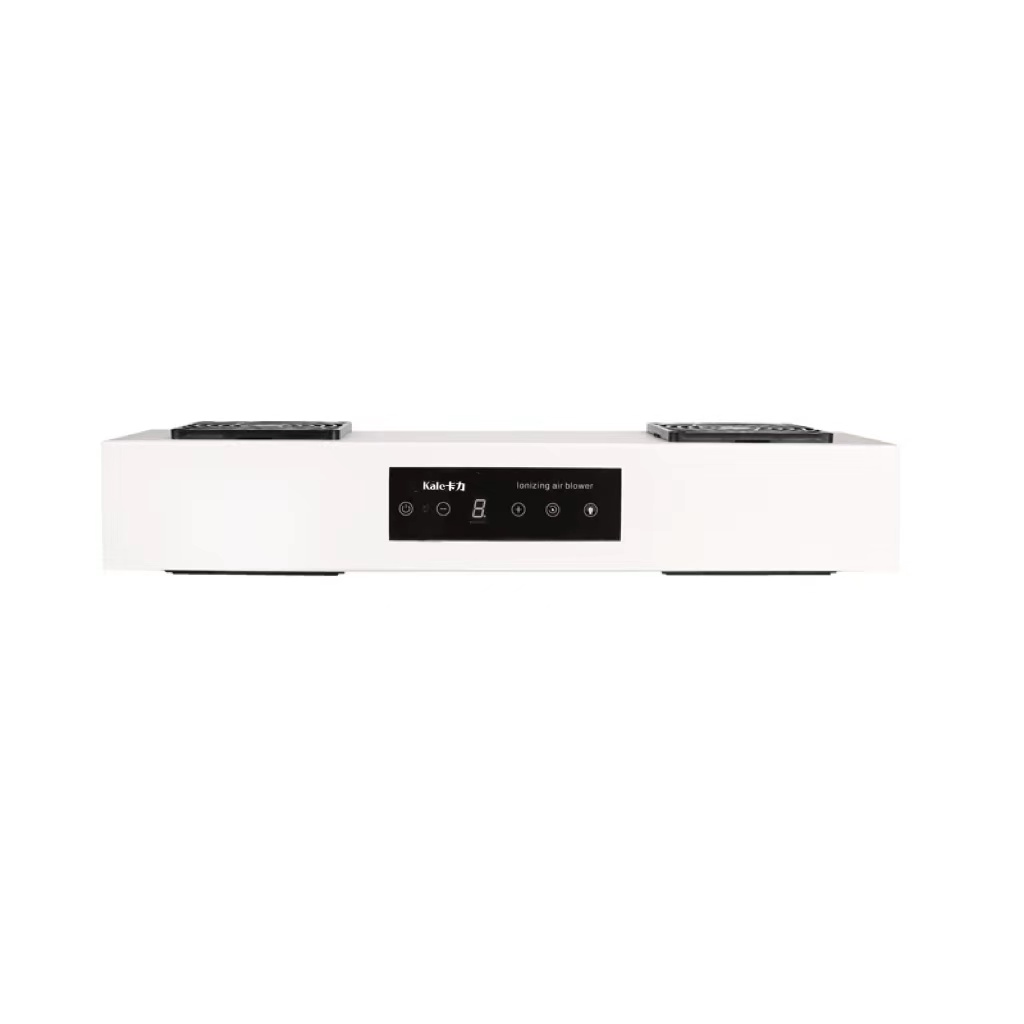

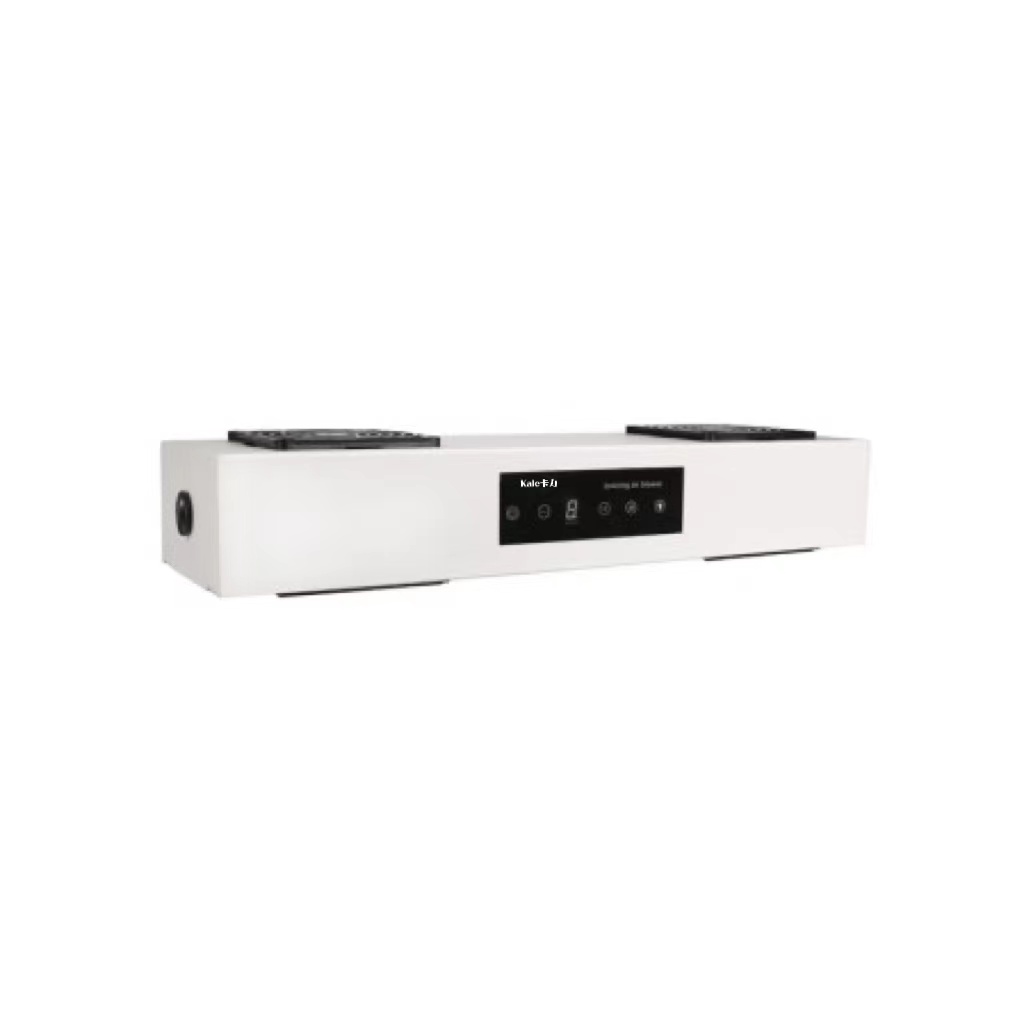

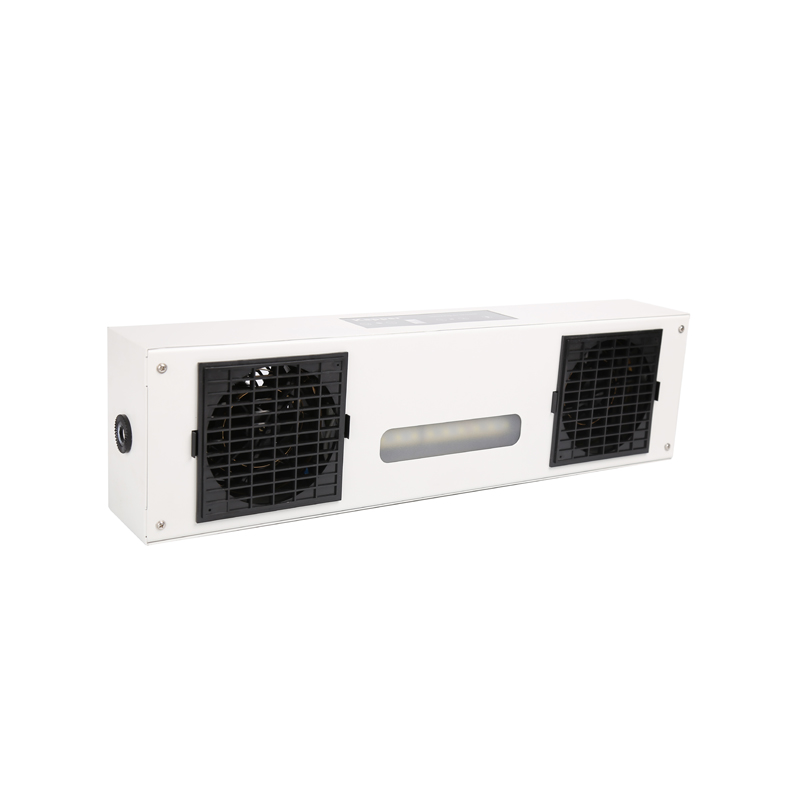

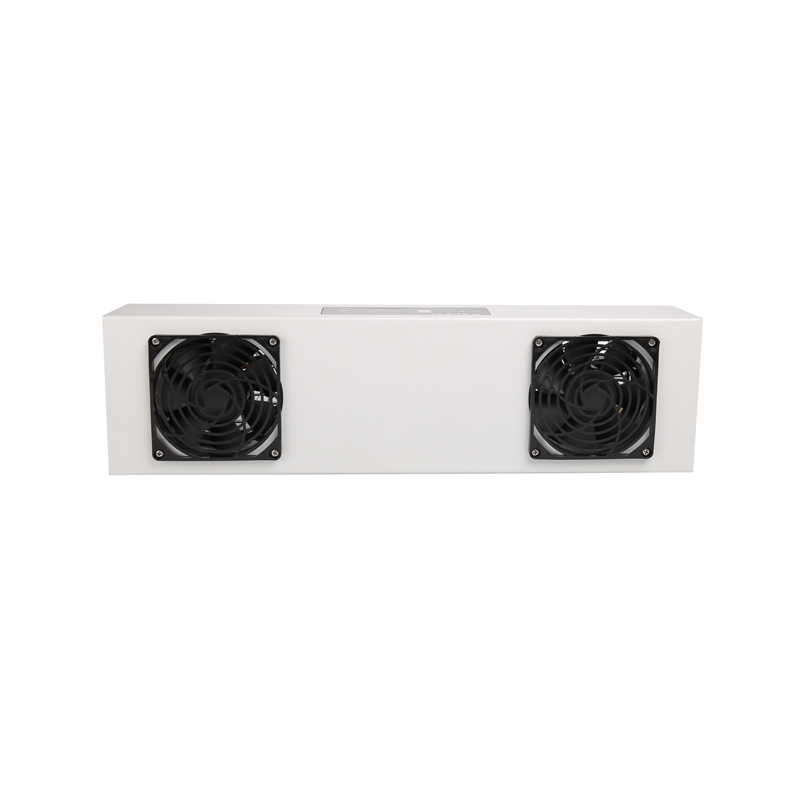

  • K102B ESD Intelligent Overhead Ionizer - 2 fans



    1.       Lightweight, compact and quiet for unobtrusive use

    2.       Ion balance monitoring system with LED display

    3.       Sound and light alarm for abnormal high pressure detected

    4.       Automatic shut-down sensor to  detect  obstacles during working

    5.       Fast, targeted of neutralization of electrostatic charge: ≤2S

    6.       Special tungsten alloy discharge needles, designed for longevity without abrasion

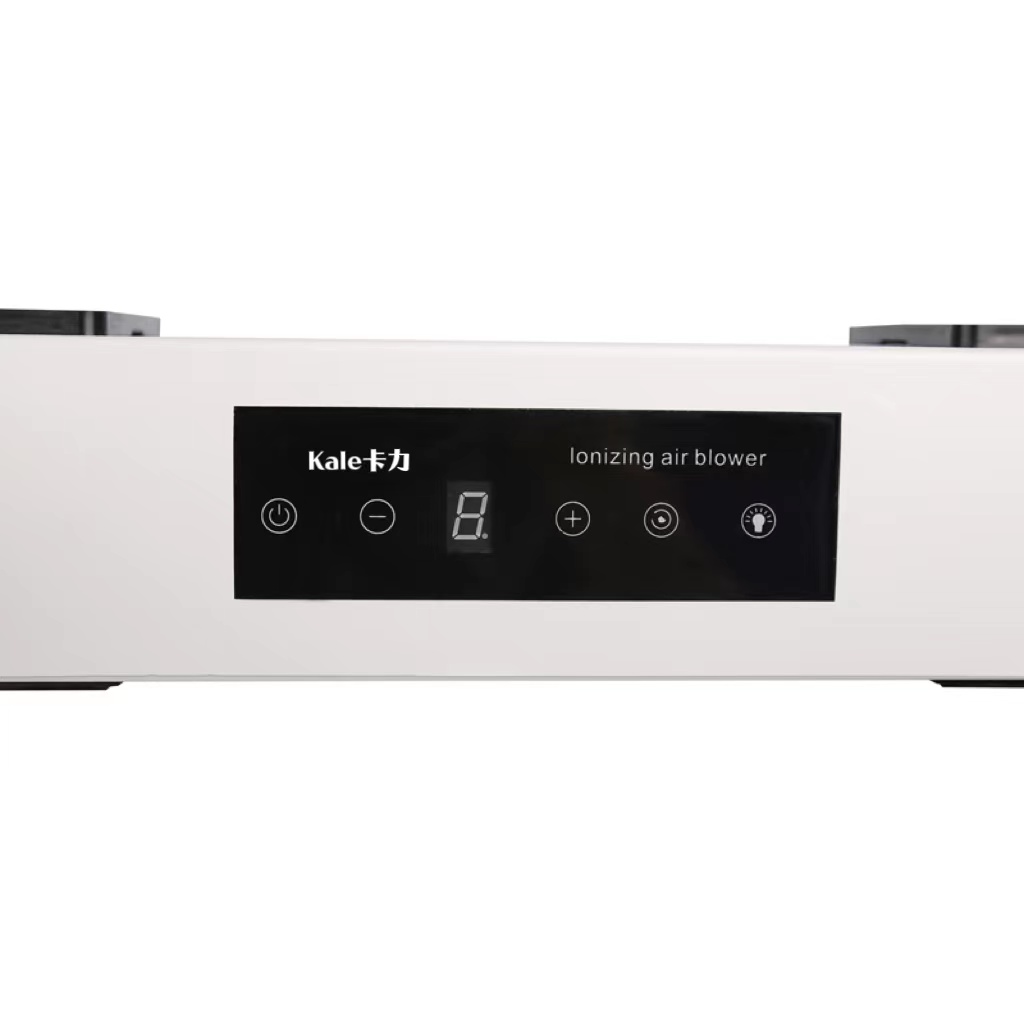

    7.       Touch control or remote control: power on / off,  ion airflow speeds

    8.       Remote control to set the airflow speed to standardize anti-static decay of all ionizers in the same area

    9.       The wind speed will be displayed through LED to achieve visual management.

    10.   Automatic cleaning of electrodes (every 8h, possible to personalize)

    11.   Automatic memorizing of cleaning program setted

    12.   Low energy consumption, economical and ecological

    13.   Two layer of fan cover: the front cover to avoid the electronic touch with hand, may be flexibly removed, the back cover is a dust filter

    14.   Clean room compatible (ISO class 5)

    Specifications

    power

    10W

    Input

    220V/50Hz or 110V/60Hz

    Output voltage

    Inventer AC 5.0KV

    Operating distance

    100-600mm

    Ion balance

    ± 10V ( distance of 300mm)

    Discharge time

    ≤ 2S (Distance of 300mm)

    Audible noise

    45-60 dB

    Air volume output

    80-220 CFM

    Remote control

    Power on/off; fan speed control, program fixation, reset

    Touchscreen control

    Power on/off; fan speed; clean program; fault alarm

    Indicator Lights

    High bright LED/Fault

    Audible Alarm

    Fault of pressure

    Operating temperature

    0-50°C

    Operating humidity

     56% - 65%

    Dimensions

    550(L) x 150(W) x 130(H) mm without stand

    Weight

    5.8KG

    Enclosure

    Aliminum

    Mounting

    Sand blasting

    Warranty

     1 year limited warranty
